Alat Uji Cairan Rem Mobil DOT3/4/5 OBD2/Pena Pengujian Cairan Rem Pengukur Oli Rem

锦丰达科技有限公司专业批发各品牌小车，卡车OBD2转接线，ELM327系列，Viecar系列，Vgate系列，ECUChip Tunning tool，Auto Diagnostic Tool，Auto DiagnosticCable等，公司产品支持开发定制，欢迎新老客户来电咨询

此产品包装方式为自封袋包装

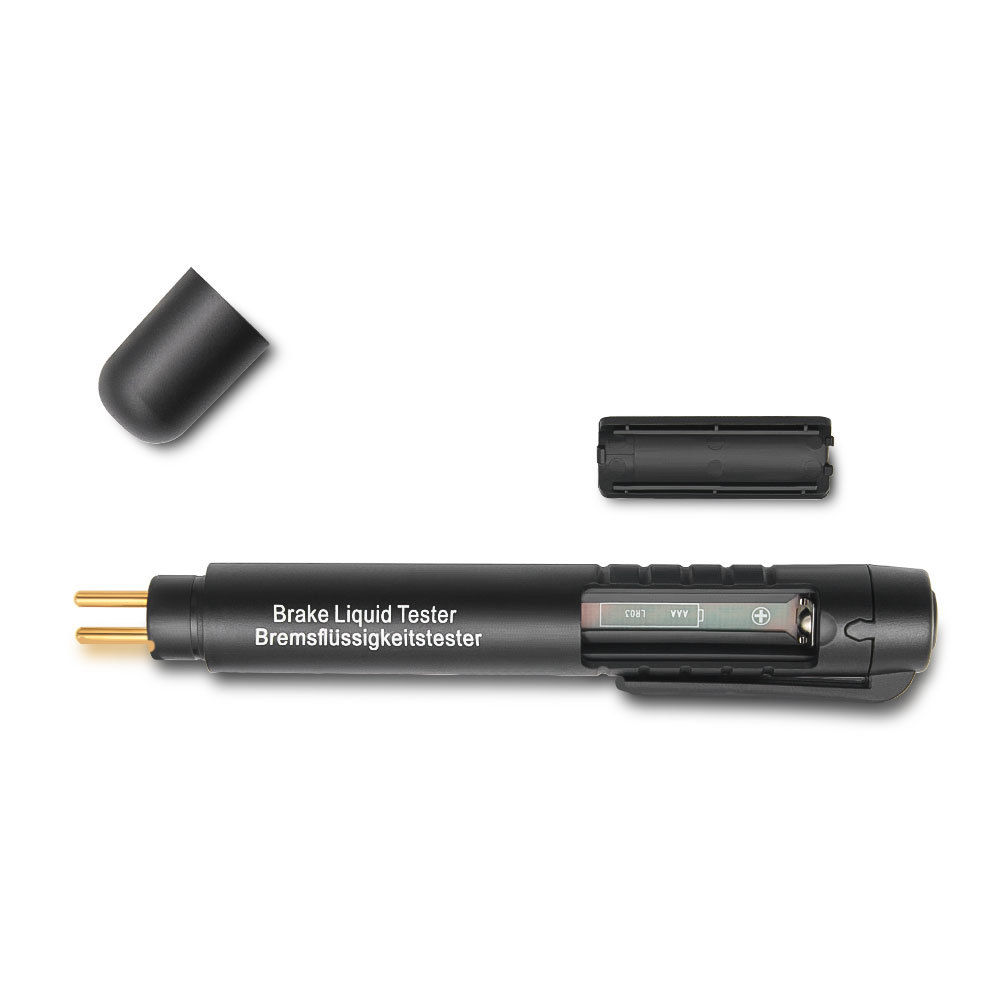

Brake Fluid Liquid Tester Auto 5 LED Car Vehicle Testing Tool

Many thanks for selecting this brake fluid tester.

The tester can be used as a digital brake fluid tester suitable for determining brake fluid quality. Developed for professional use in astomotive repair shops and in servicing. Quality is tested and included on five LEDs in terms of "per cent of water in the brake fluid . "

Ready for Brake Fluid Test

Unscrew the brake fluid reservoir, and pull off the cap of the Brake fluid tester.Dip the test probes into the brake fluid up to the plastic rim of the device.

To check Fluid Quality

Press the button for power on, green LED will light up. Insert the tester into reservoir for one second then the tester result will be correctly indicated by LEDs.Repress the button for power off. The tester will automatically power off after about 15 seconds of inactivity.

Tester Specification:

1. To check the quality of brake fluid quality

2. 5 LEDs to indicate percentage of water in the brake fluid

3. Automatically power off

4. Operated by a LR03 AAA 1.5V battery (Not included)

Tester Instructions:

Brake fluid detection pen is based on the change in conductivity to determine the moisture change brake fluid. It shows clearly the extent of moisture contained by the light-emitting diode, high moisture content will lead to lower boiling point, affect braking performance. Red indicates the brake fluid needs immediate replacement, green represents good condition, yellow indicates the state is acceptable but soon replaced.

1. the green LED lights = water content in the brake fluid H2O <1.5%, brake fluid qualified

2. the yellow LED lights = brake fluid water content H2O = 1.5% to 3%, can continue to use, test again six months later

3. the red LED lights = water content in the brake fluid H2O> 3%, can not continue to use the brake fluid needs to be replaced Red LED: change brake fluid

4.LED red flashing: battery replacement

5.LED yellow: low moisture content, check again in six months

6.LED green: brake fluid lines / cell row

Tester Features:

Five LED indicators show the test results more accurate.

Testing DOT 3, DOT4, DOT5 brake fluid

Press the switch to turn on the power, the green LED light that represents the battery properly, the green light does not shine on behalf To replace the battery

Automatic shutdown

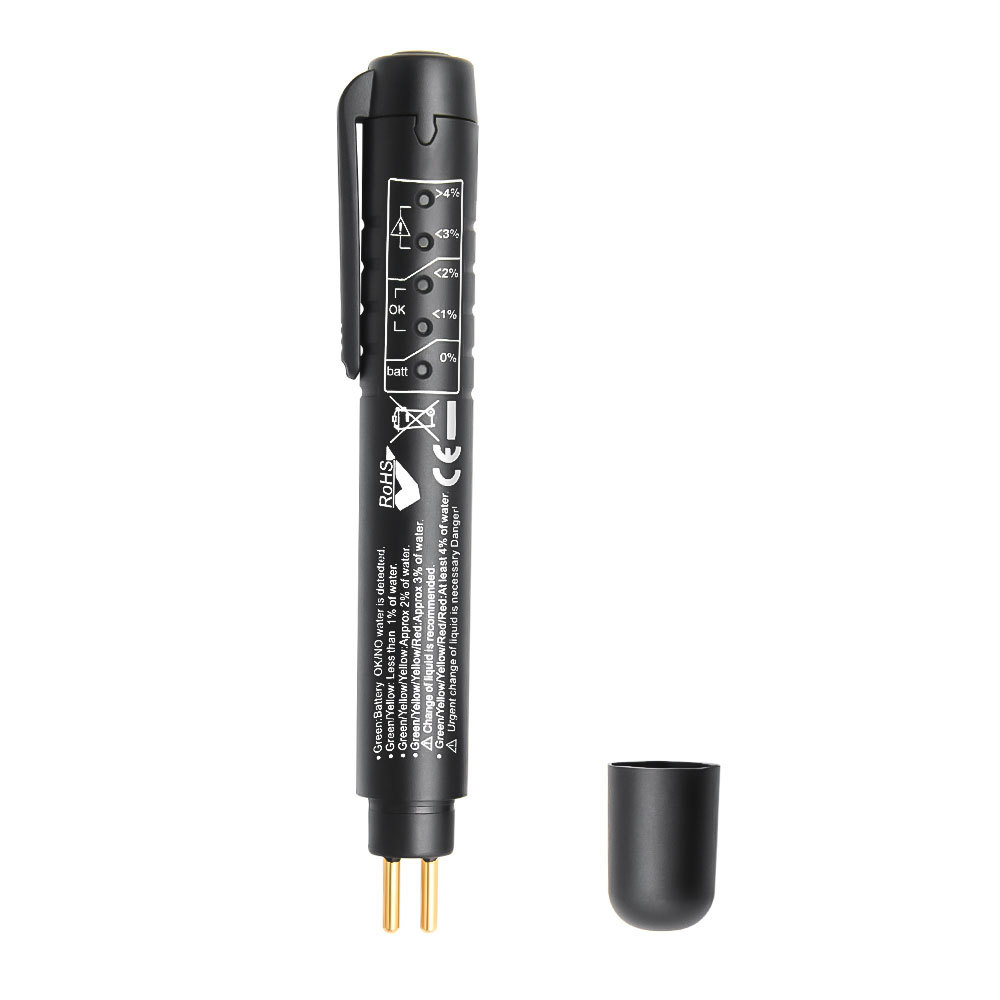

Technical parameters:

Green: Battery OK, that is, brake fluid does not contain water

Green / yellow: brake oil in water content of less than 1%, better brake fluid performance, ease of use.

Green / yellow / yellow: brake oil in water content of about 2%, brake fluid can continue to use.

Green / yellow / yellow / red: brake oil in water content of about 3%, the proposed replacement of brake fluid.

Green / yellow / yellow / red / red: brake oil in water content of at least 4%, the brake fluid must be replaced immediately responsible for very dangerous.

Attention:

1. Replace battery if the gree LED not light up any longer after you press power on button. Wash the test probe with tab water after use.

2.In case of skin contact with brake fluid, thoroughly wash the affected skin or clothing with water.

3.Do not expose brake fluid to the atmosphere for a long time as the fluid is highly hygroscopic!

Packaging List：

1x brake fluid tester

1x PE bags packing

Please note: it no included battery. Please buy at your local store .Battery model is LR03 AAA.

刹车液体测试仪Auto 5 LED汽车测试工具
非常感谢选择这种制动液测试仪。
该测试仪可用作适用于确定制动液质量的数字式制动液测试仪。开发用于专门用于机车维修店和维修服务。以“百分数制动液中的水”为基础，对五个LED进行了质量检测和测试。

准备制动液测试
拧下制动液储存器，并拉出制动液测试仪的盖子。将测试探头插入制动液中直到设备的塑料边缘。

检查流体质量
按下按钮打开电源，绿色LED指示灯亮起。将测试仪插入水箱一秒钟，然后测试仪结果将被LED正确指示。按下按钮关闭电源。大约15秒钟后，测试仪将自动关机。

测试仪规格：
1.检查制动液质量的质量
2. 5个LED，用于指示制动液中水的百分比
3.自动关机
4.使用LR03 AAA 1.5V电池（不包括）

测试仪说明：
制动液检测笔是根据电导率的变化来确定湿度变化的制动液。它清楚地显示了发光二极管含有的水分含量，高含水量将导致较低的沸点，影响制动性能。红色表示制动液需要立即更换，绿色表示良好状态，黄色表示状态可接受，但很快更换。

测试仪特点：
五个LED指示灯显示测试结果更准确。
测试DOT3，DOT4，DOT5制动液
按开关打开电源，代表电池的绿色LED指示灯正常，绿灯不亮。更换电池
自动关机

刹车油测试笔使用方式：
1：打开检测笔前边的探头保护盖，轻轻按下按钮，笔上5个显示灯下部的绿灯亮起。
2：把亮起绿灯的检测笔前的金属探头平行插入车油壶内，两个探头都要与油面接触。
3：根据检测笔上方亮起灯的颜色识别刹车油的状况，检测笔适合检测符合DOT3  DOT4标准的刹油，对于刹油建议选用正规厂家品牌的合成刹车液，这样的合格产品才能保证好的制动效果.
4：检测完毕，10秒钟后，检测笔上的灯会全部熄灭，检测笔进入省电模式，一节电池可以用很久，检测笔基本不需要消耗多少电量，车上常备，经常了解自己的刹车油质量方便快捷，
测试仪可以作为合适的用于确定制动液质量的数字制动液测试仪。
五个LED•质量测试，并表示“％中的制动液的水”的条款。
•LED显示：绿色：没有水- OK。
•黄色：小于1％的水制动液高于标准。
•黄色/黄色：约。2％的水仍可使用。
•黄色/黄/红：约。3％的水。制动液建议更换。
•黄色/黄色/红色/红色：至少4％的水。制动液必须更换

注意：
1.如果按下电源按钮后，如果gree LED指示灯不亮，请更换电池。使用后用标签水清洗测试探针。
2.如果皮肤与制动液接触，请用水彻底清洗受影响的皮肤或衣服。
3.不要让制动液长时间暴露在大气中，因为液体是高吸湿性的！

包装清单
1x制动液测试仪
请注意：没有电池。请在您当地的商店购买。电池型号为LR03 AAA。
