The purpose of the document is to specify the functional requirements of a 64.95W switching power supply.
2、输入特性/INPUT CHARACTERISTICS:
2.1额定电压/Rated Voltage:100~240Vac
调整范围/Variation Range:90-264Vac
2.2输入频率/Input Frequency:
额定频率/ Rated Frequency: 50/60Hz.
调整频率/Variation Frequency:47-63Hz
2.3输入电流/Input Current:
当输入交流电压为额定值的下限电压负载满载时,输入交流电流1..
1.mps max At any input voltage and rated, DC output rated load.
2.4浪涌电流/Inrush Current:
当输出为额定负载,环境温度为25℃,输入240Vac冷态起机时将不会损坏.
No damage shall be occurred and the input fuse shall not be blown up，Cold start at 240Vac input, with rated load and 25℃ ambient.
2.C漏电流/Ac Leakage Current:
当输入电压240Vac时,漏电流为0.25mA.
0.25mA Max.At240Vac input.
3、输出特性/OUTPUT CHARACTERISTICS:
3.1输出功率/Power output
电压
Voltage 负载
Min. Load 额定负载
Rated. Load 峰值功率
Peak 输出功率
Output power
15VDC 0.01A 4.33A 64.95W
3.2负载特性,调整率/Combined Load/Line Regulation
电压
Voltage 负载
Min. Load 额定负载
Rated. Load 线性调整
Line Regulation 负载调整
Load Regulation
15VDC 0.01A 4.33A ±2% ±5%
3.3纹波和噪音Ripple and Noise:
测试条件:在输入115/230Vac 25℃和输出及负载时，使用示波器带宽为20MHz连接到适配器的输出端，同时输出端并联一个47uF的电解电容和一个0.1uF的瓷片电容.
At 115/230Vac 25℃ input and output Min and Max.Load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.
电压 纹波/噪音
Voltage Ripple and Noise(Max.)
+15VDC 150mV p-p
3.4启动延迟时间/Turn on delay time:
当输入115Vac和输出负载时,启动时间为3S.
3Second Max.at 115Vac input and output Max.load.
3.5上升时间/Rise time:
当输入115Vac和输出负载时时间为40 mS.
40 mS Max.at 115Vac input and output Max load.
3.6保持时间/Hold up time:
当输入115Vac 和输出负载时,保持时间为5 mS .
5 mS Min.at 115Vac input and output Max.Load.
3.7效率/Efficiency:
当115/230Vac输入电压时，1/4，1/2, 3/4和满载计算平均效率，85.00%.
85.00% Min,At 115/230Vac input voltage,1/4, 1/2, 3/4 and full load calculation average efficiency.
适配器满足能效IV.
Adapter meet efficiency lever IV.

3.8过冲/Overshoot:
在电源开启或关闭的时候,15%.
15% Max.When power supply at turn or turn off.
4、保护功能/PROTECTION FUNCTION:
4.1短路电路保护/Short circuit protection:
该电源供给器在短路解除时能正常工作恢复.
The power supply will be auto recovered when short circuit faults remove.
4.2过流保护/Over current Protection:
过流故障排除后,电源将自动恢复正常工作.
The power supply will be auto recovered when over current faults remove.
5、环境要求/ENVIRONMENTAL REQUIREMET:
5.1 工作温度/Operating Temperature:
0℃-40℃,满载,正常工作.
0℃ to 40℃,Full load, Normal operation.
5.2 储藏温度/Storage Temperature:-20℃ to 60℃
带外壳/With package
5.3工作湿度/Relative Humidity:
5%(0℃)~90%(40℃),72小时,满载,正常工作.
5%(0℃)~90%(40℃)RH,72Hrs,Full load, Normal operating.
5.4 振动/Vibration:
1. 测试标准:电工电子委员会
Operating: IEC 721-3-3 3M3
5~9Hz,A=1.5mm
加速度(9~200Hz,Acceleration 5m/S2)
2. 运输/Transportation:
IEC 721-3-2 2M2
5-9Hz,A=3.5mm
9~200Hz,加速度Acceleration=5m/S2
200~500Hz,加速度Acceleration=15m/S2

3. 轴向振动/Axes,10 cycles per axis.
在测试过程中不能出现性的损坏.
No permanent damage may occur during testing.
在电源开启和关闭后,样机能够恢复到初条件.
The SAMPLE has to restore to its original situation after power off/on..

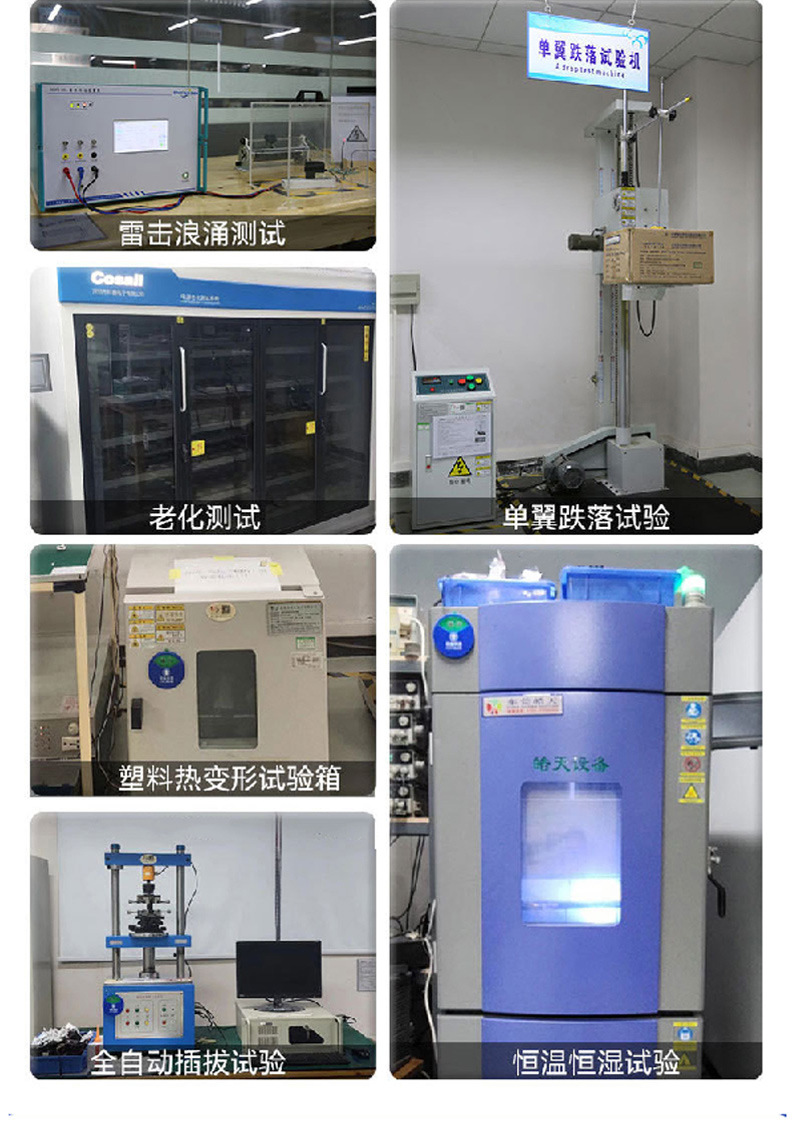

5.5 跌落试验/Dropping Packed:
跌落高度为760mm;
Drop the height is760mm.
测试台面是厚13mm的夹木板，离地面高19-20mm
The horizontal surface Consists of hardwood at least 13mm thick,mounted on two layers of plywood
each 19mm to 20mm thick,all supported on a concrete or equivalent non-resilient floor.

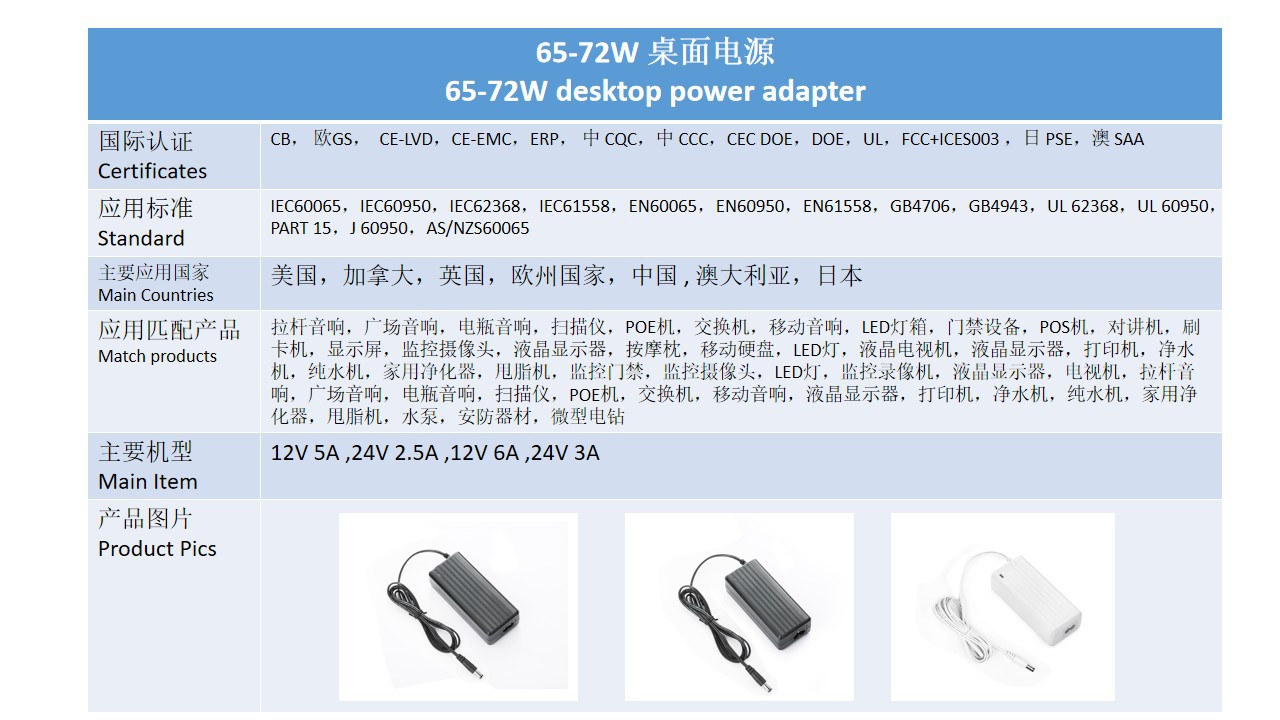

6、及EMC要求/SAFETY AND EMC REQUIREMENT:
6.1 : 符合标准： IEC60065
Safety:accord standard with：IEC60065
6.2 高压/DIELECTRIC STRENGTH Hi-Pot:
初级对次级/Primary to secondary: 4242Vdc/5mA/60S for type test.
6.3 绝缘阻抗/Iusulation resistance:
初级对次级/Primary to secondary:20MΩ min at 500V DC.
6.4 EMI标准/EMI STANDARD
Meets the Limits of/测试符合
.Fcc part15 class B rules
.EN55022 class B rules
.GB9254-1998,GB17625.1-2003
.AS/NZS CISPR22:2006.

 7、结构参数/MECHANICAL REQUIREMENT:

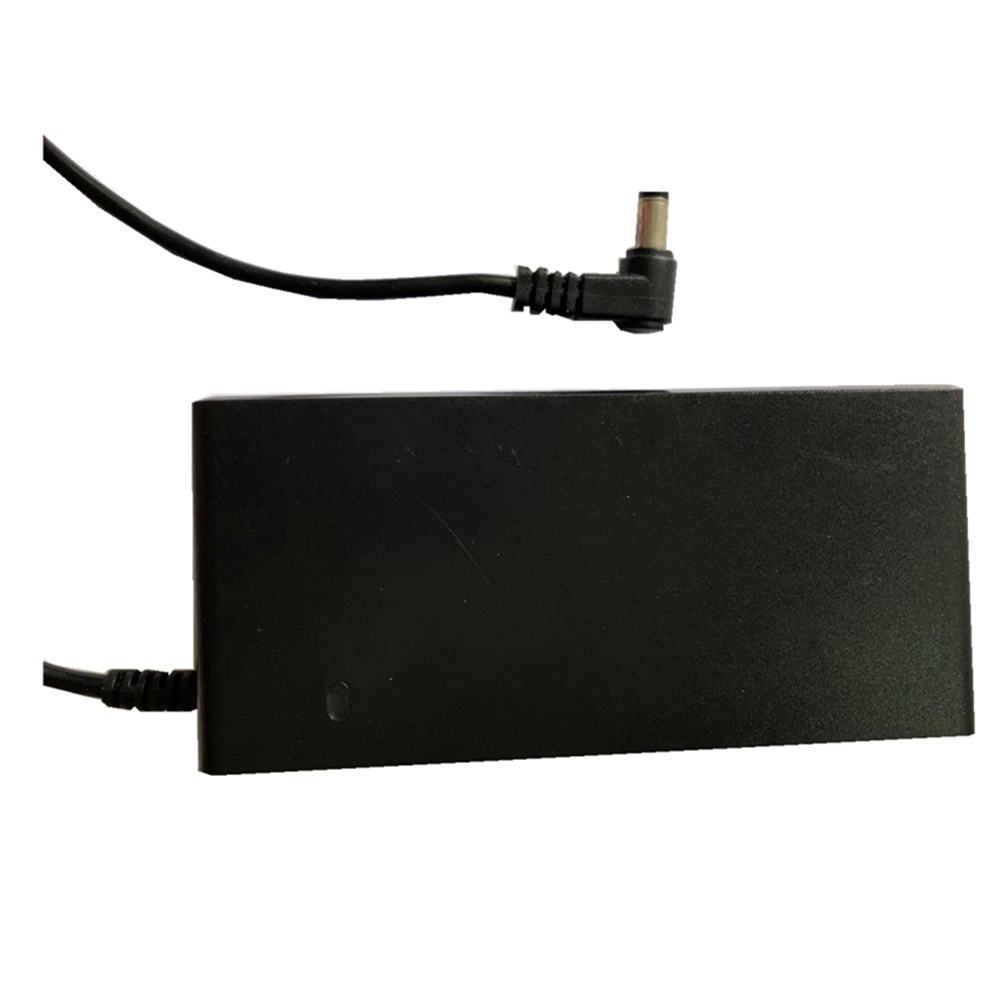

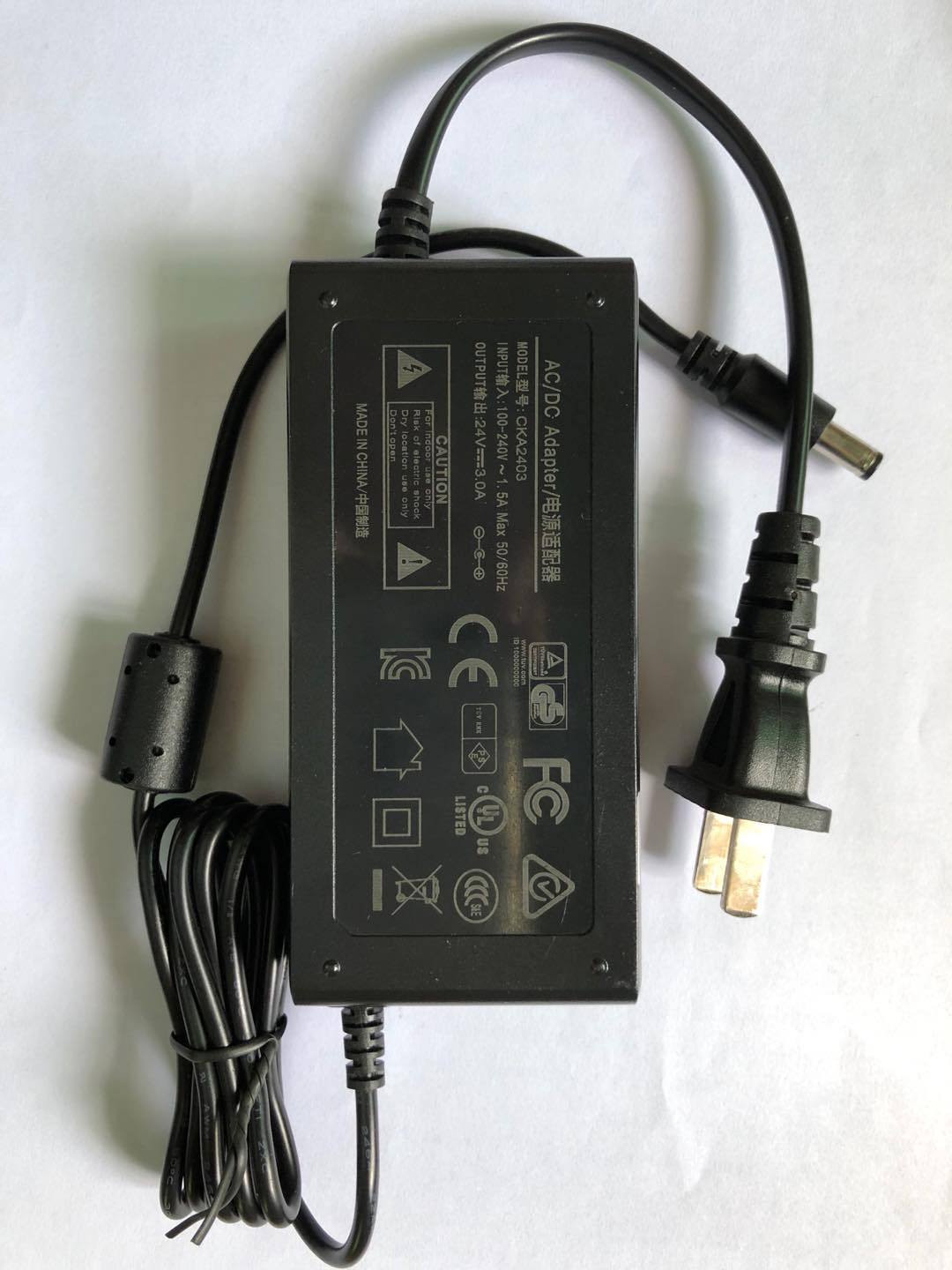

7.1 外壳/Enclosure:
The power supply size: L94x W45x H30mm;
外壳尺寸: L94x W45x H30mm;

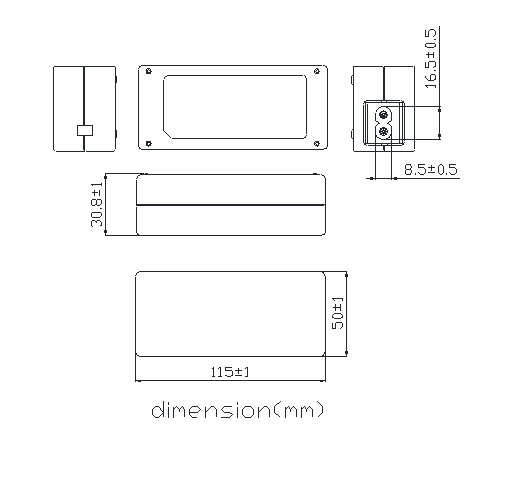

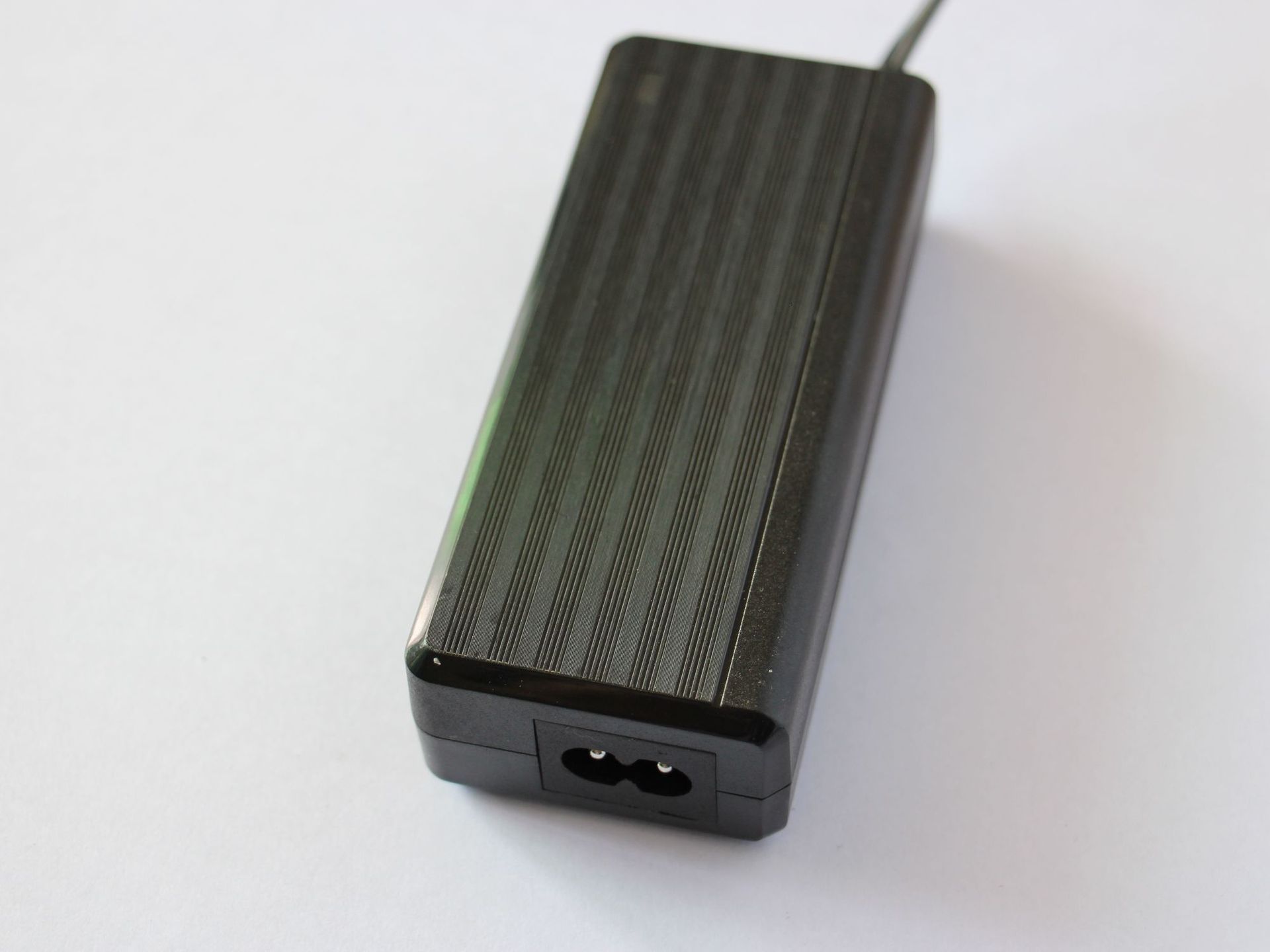

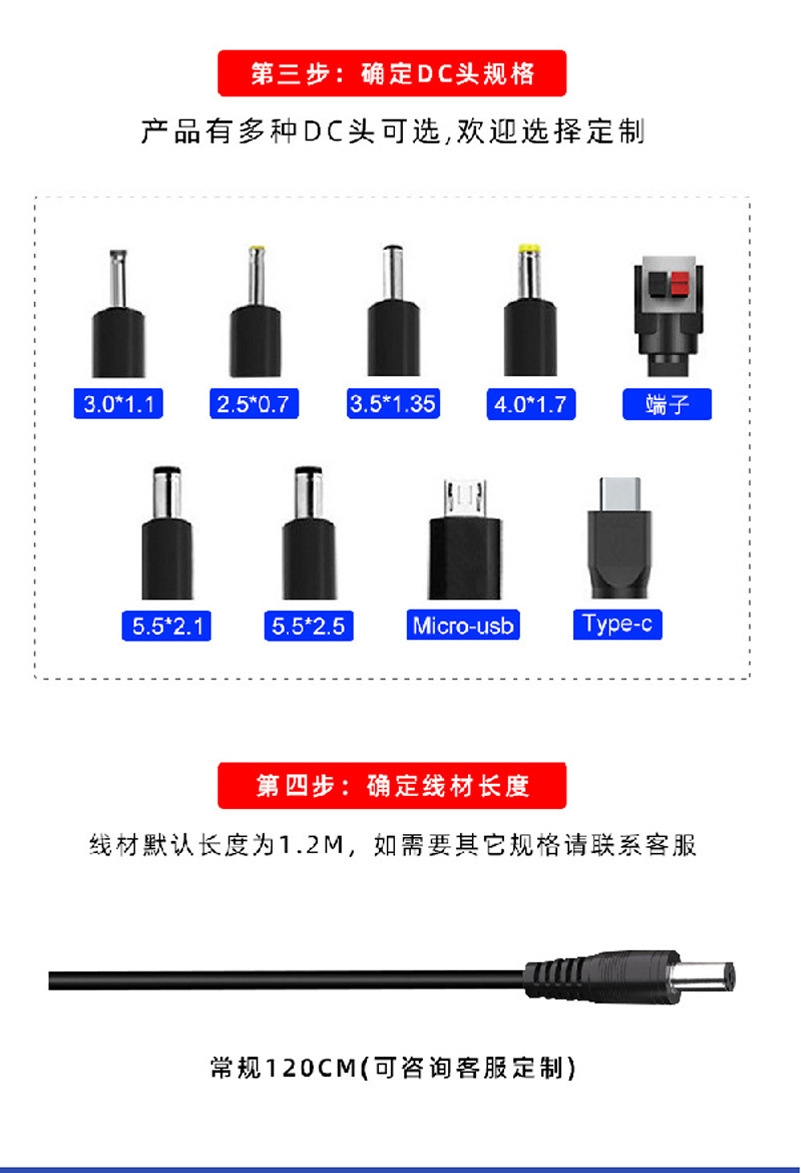

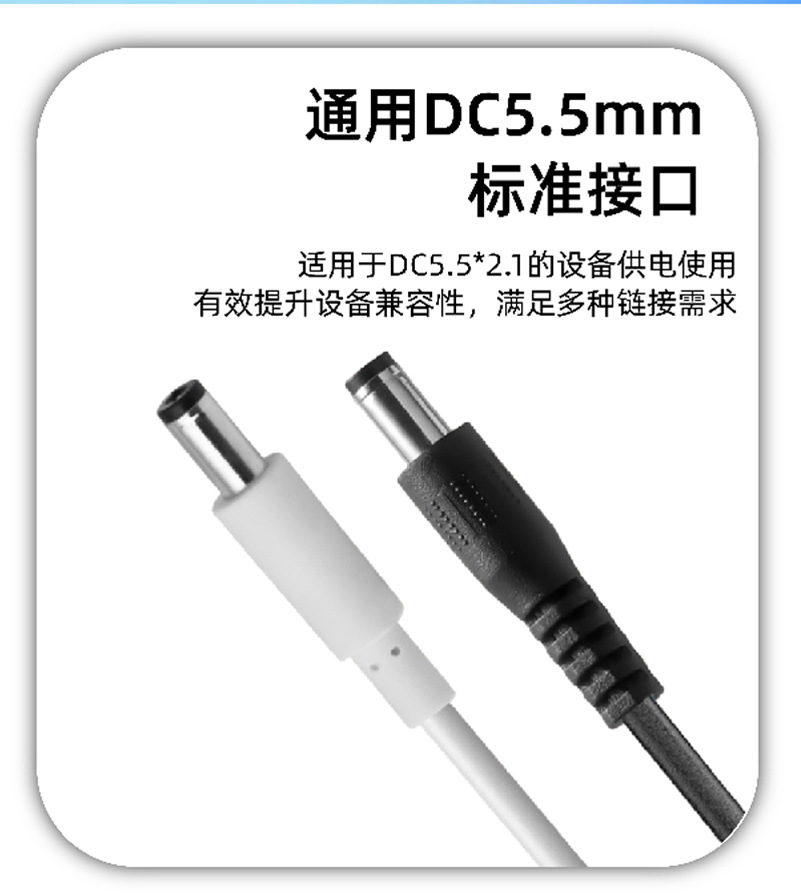

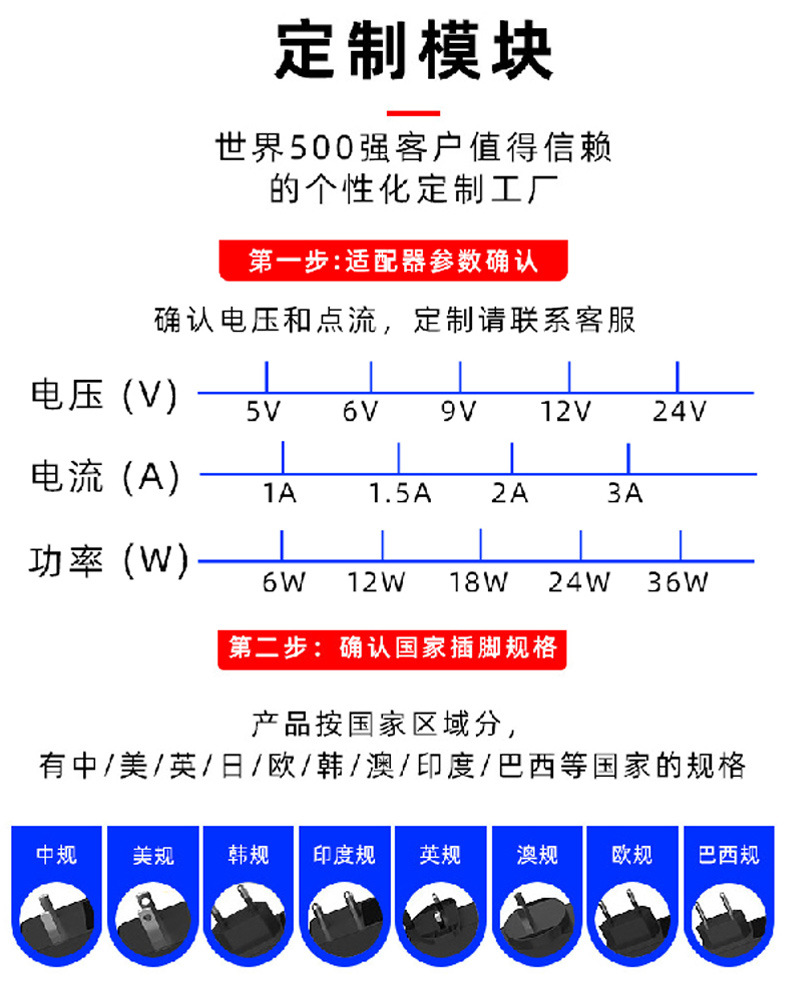

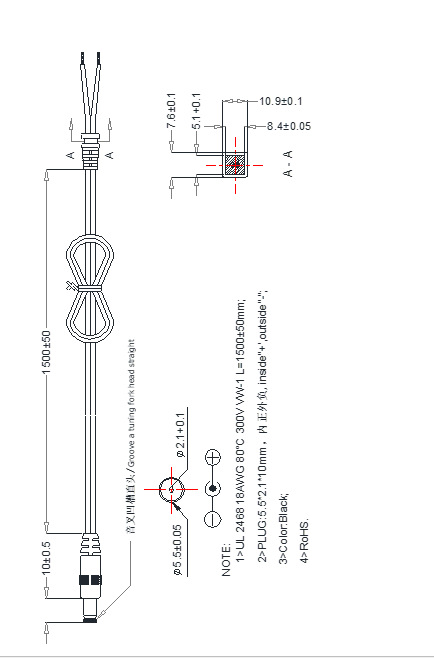

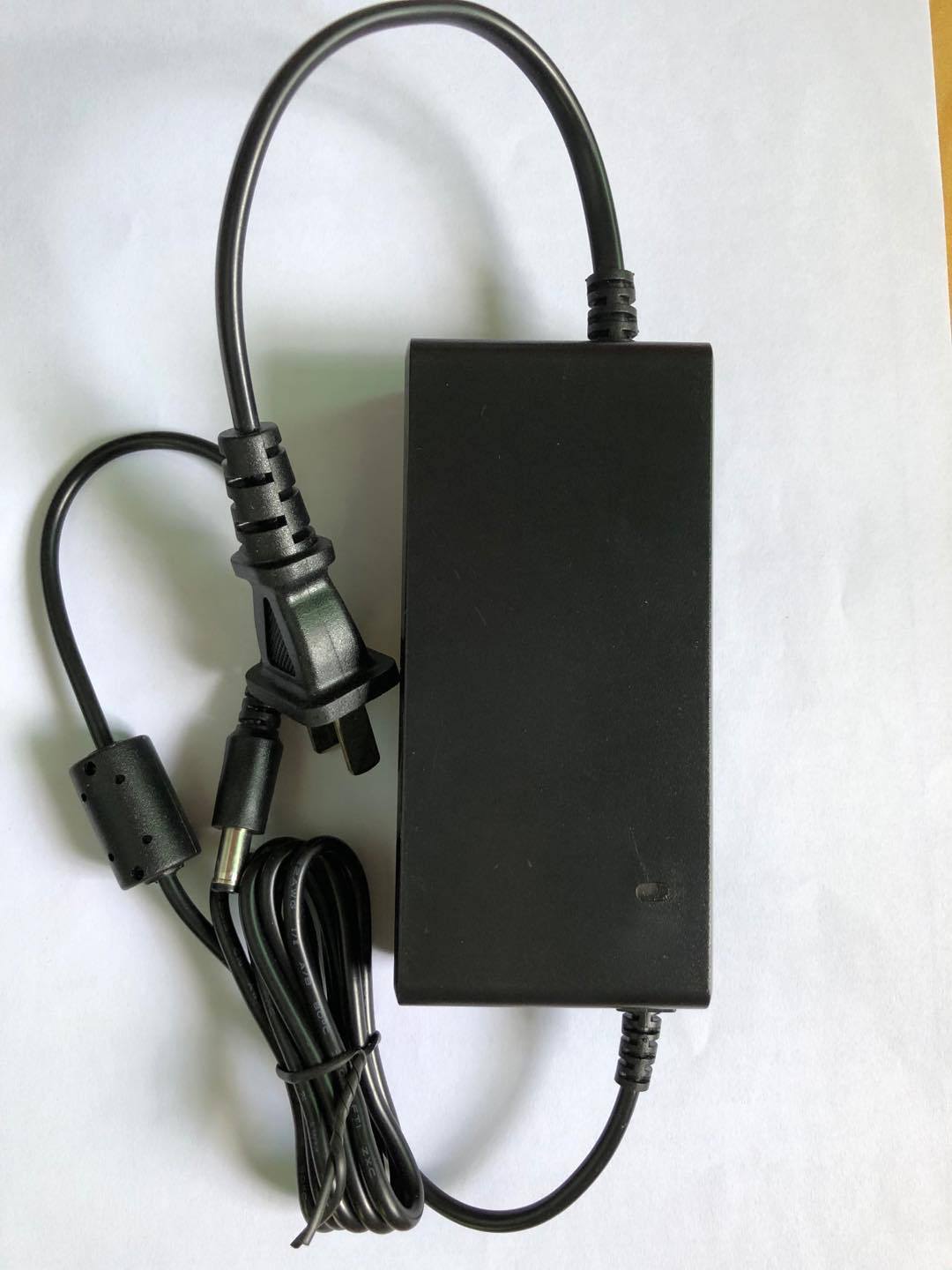

7.2 输入线/Input Connector:
2PIN插脚/Two pin input plug of 2PIN.
