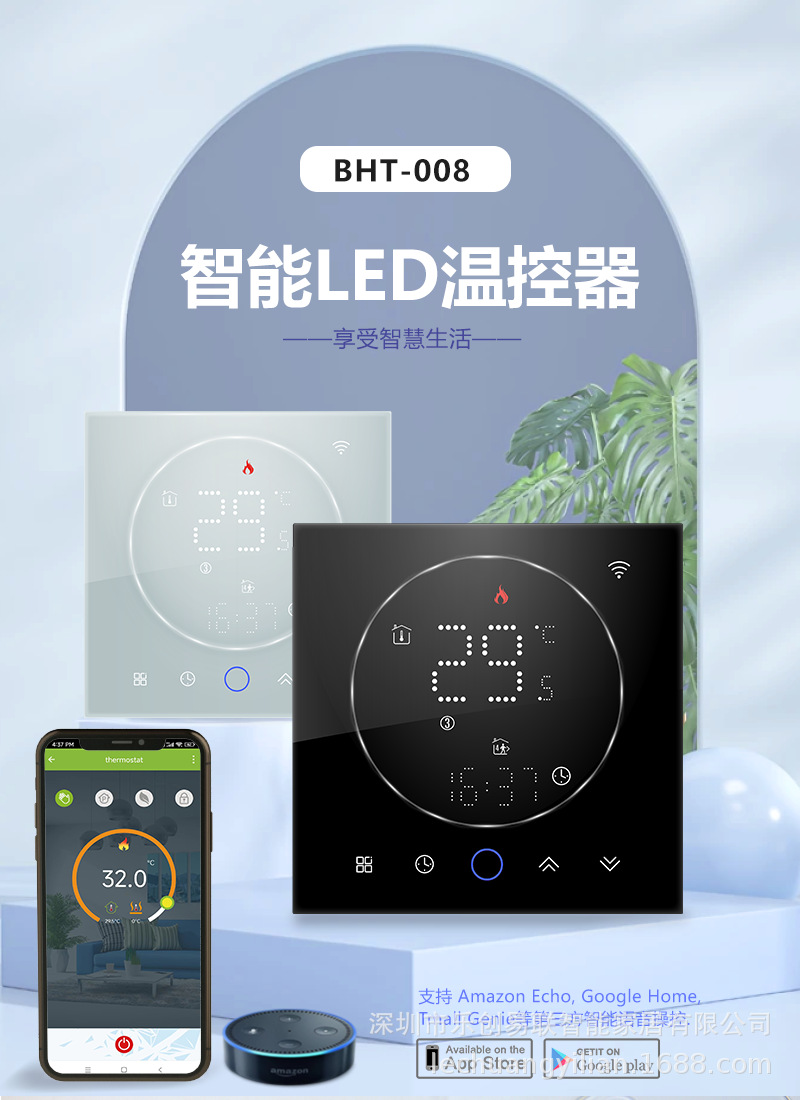

Panel pengontrol pemanas lantai ketel listrik/air termostat nirkabel suara WiFi pintar grafiti seri BHT-008

Stok:

SKU:{{ product.sku }}

Model: {{ product.model }}

Detail Produk

1681802950443

BHT-008系列涂鸦智能WiFi语音无线温控器水电/锅炉地暖控制器面板

BHT-008适用于电采暖、水采暖、壁挂炉以及锅炉温度控制系统，

可配套在智能家居、商场、工业作业中使用。

使用前，请确认此产品具体型号及对应的采暖设备。

GA-适用于水采暖设备

GB-适用于电采暖设备

GC-使用于壁挂炉、锅炉设备

产品参数：

电压范围：95～240VAC，50～60HZ或 24V，DC/AC,50~60Hz

电流：5A（水采暖/壁挂炉/锅炉）

16A（电采暖）

传感器：NTC3950,10K

温度误差：±1℃

时间误差：<1%

温度控制范围：5～35℃

正常工作环境温/湿度：-5～45℃，5～95%RH（无水汽凝结）

功率：

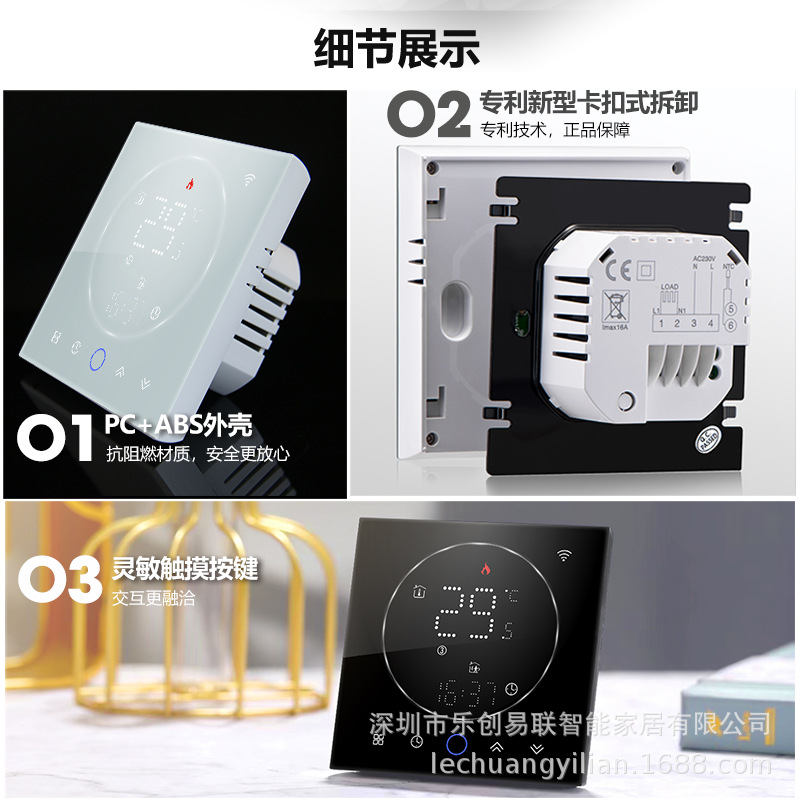

面板材质：PC+ABS工程塑料（可阻燃）

安装嵌入盒：86mm*86mm/常规欧式盒

防护等级：IP20

按键类型：电容触摸按键

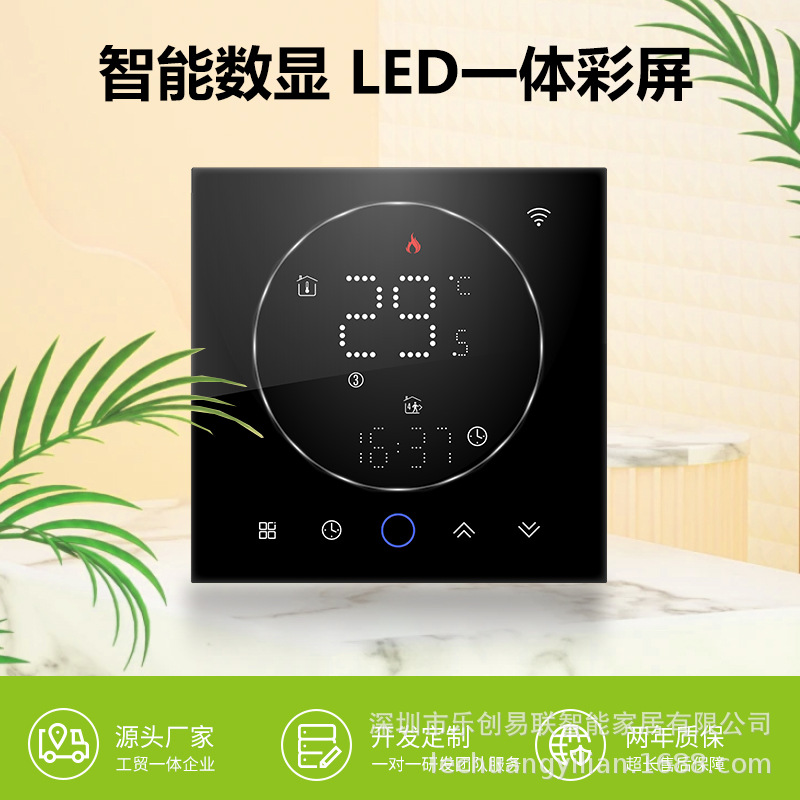

屏幕：LED多色屏

产品特点：

外形特点

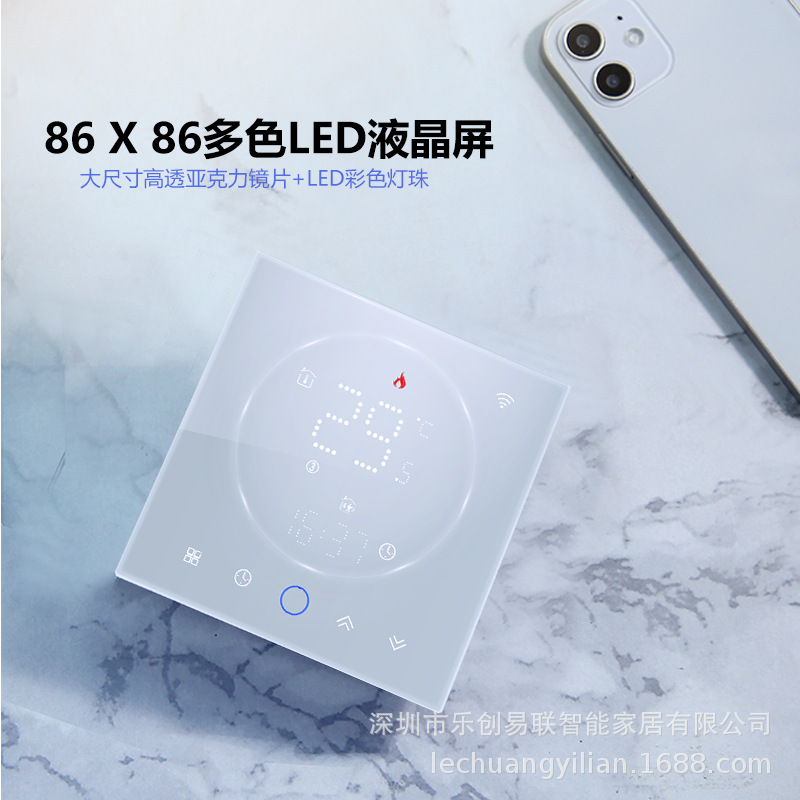

1.LED显示屏，界面更友好；LED矩阵灯，简单显示，节能，保护眼睛

2.触摸式按键，操作简单。

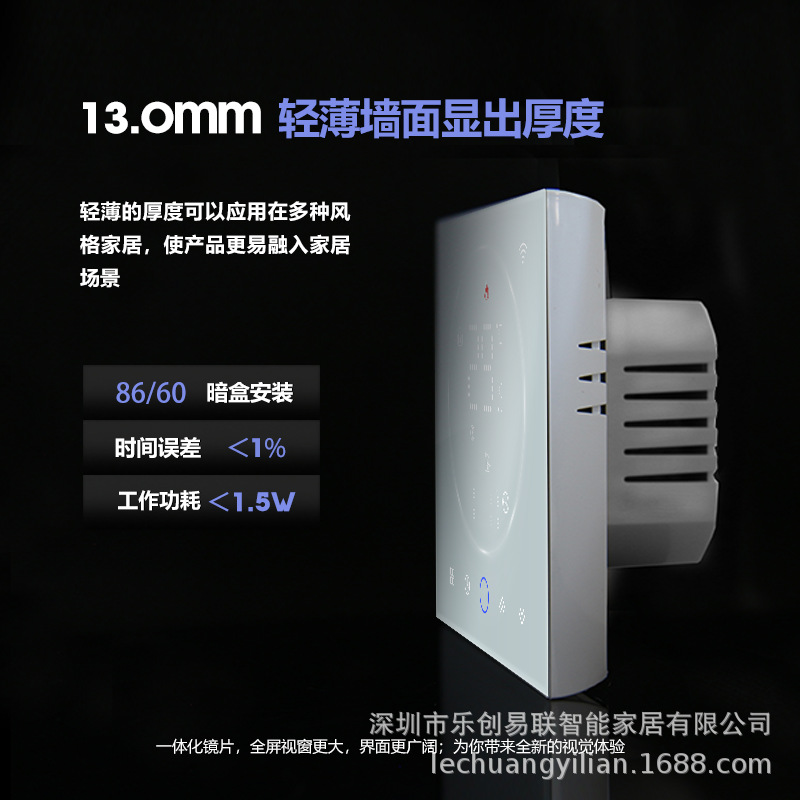

3.13mm极薄嵌入式面板，完美贴合各种墙面；

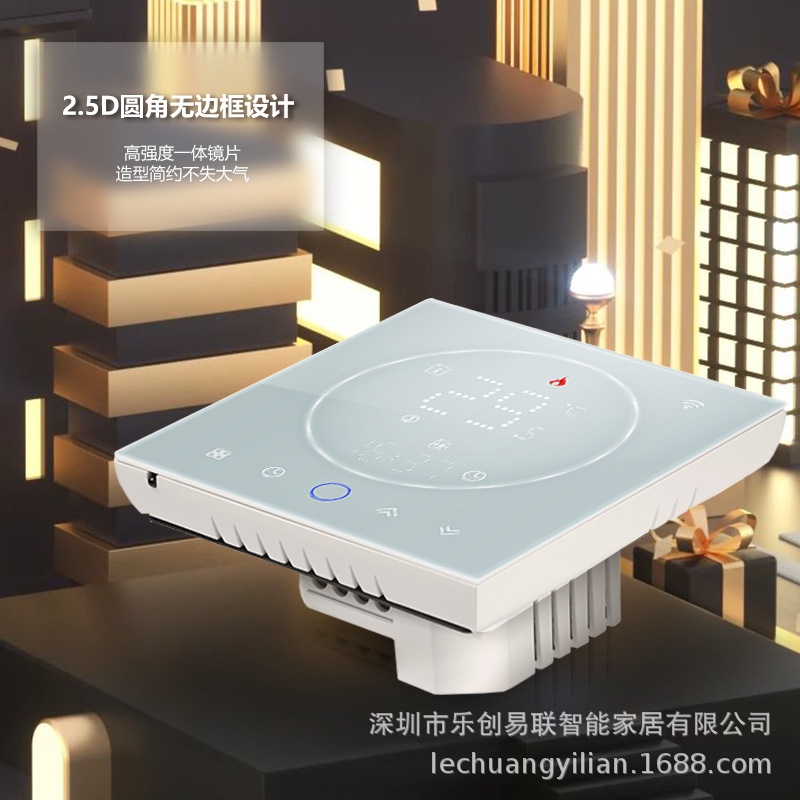

4.无边框亚克力面板设计简约又大气；

5.适配标准86mm方形暗盒、60mm欧式暗盒，满足所有安装环境；

功能特点

1.丰富的功能选择，Modbus、WIFI、房卡等，满足您的所有需求；

2.严格的控温精准度（±1℃），提供您想要的温暖；

3.断电保护，安全保存您所有的设定；

4.一周5+1+1模式预设调节，一天6时段可编程设定，绿色节能，

更少费用支出，更多智能环保；

5.支持创建产品局域组群/共享，实现产品数量无限制集中控制/

多端控制；

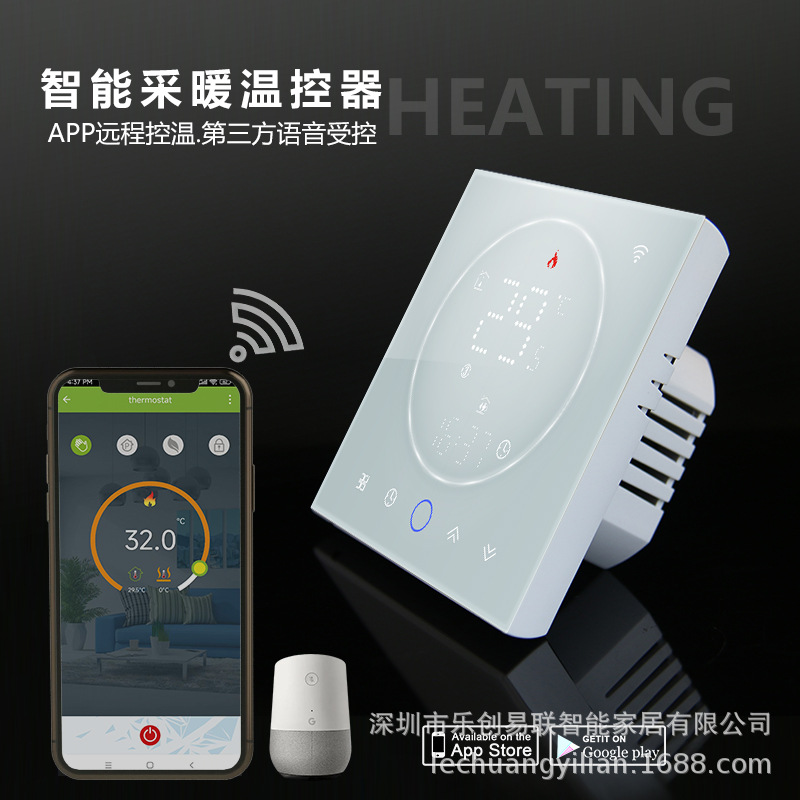

6.可完美接入：天猫精灵、Amazon echo、Google Home，体验

全新的语音控制方式；

undefined

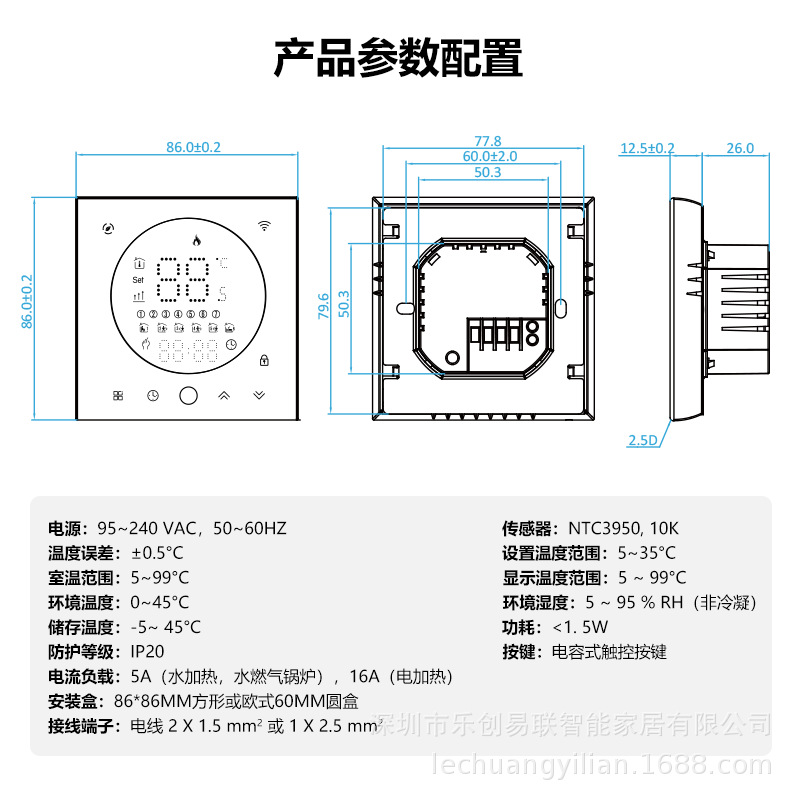

TECHNICAL DATA：

Power Supply:95 ~240 VAC, 50~60Hz or 24V DC/AC,50~60Hz

Please check the information laser printed on the back of the

thermostat for the actual voltage.

Current Load: 5A (water heating, waterlgas boiler),

16A (electric heating)

Sensor: NTC3950, 10K

Accuracy: ±0.5°C

Set Temp. Range: 5-35°C

Room Temp. Range: 5-99°C

Display Temp. Range: 5 ~ 99°C

Ambient Temp.: 0~ 45°C

Ambient Humidity: 5 ~ 95 % RH (Non Condensing)

Storage Temp.:-5~ 45°C

Power Consumption:

Timing Error: < 1%

Shell Material: PC +ABS ( Fireproof)

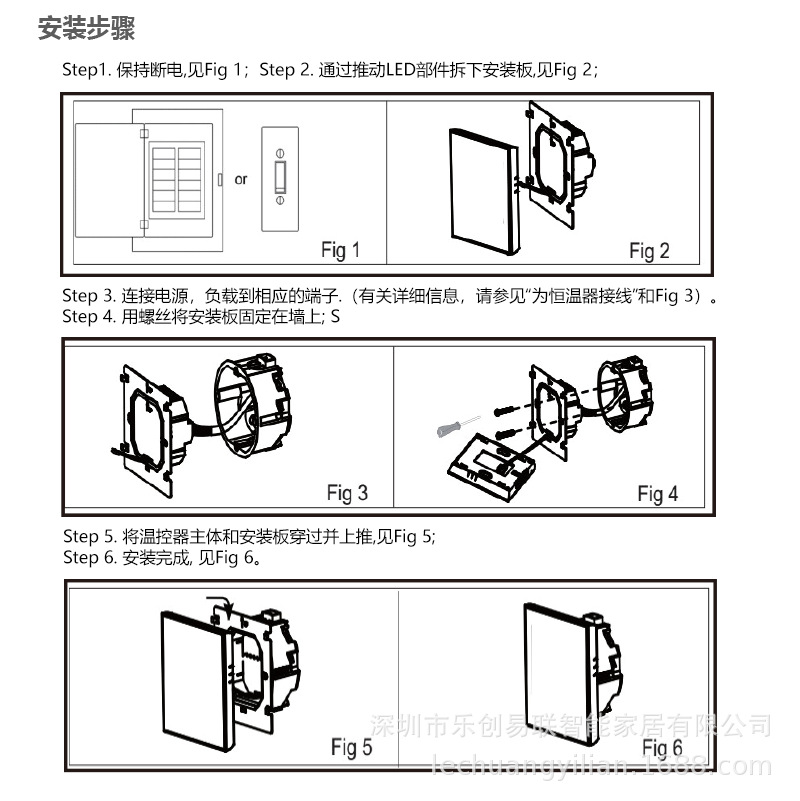

Installation Box: 86 * 86mm Square or European 60mm Round Box

Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2

Protection Class: IP20

Buttons: Capacitive Touch Buttons

FEATURES：

On Appearance

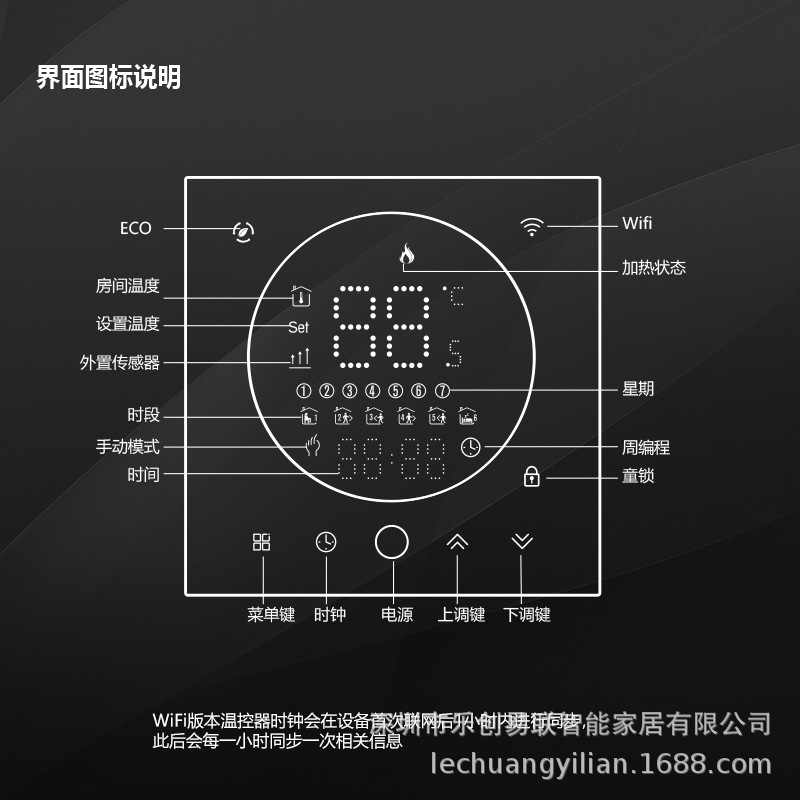

1. LED display, more friendly interface;. LED matrix light, simple display, energy

saving, protect your eyes.

2. Touch buttons to make simple operation.

3.The ultra-thin embedded panel perfectly fits all kinds of walls; The visiable

thickenss above the wall is only 12mm.

4.The borderless small rounded corner design is simple and atmospheric;

5. Full white appearance, perfectly integrated into your family.

6.Compatible with standard 86mm square cassettes and 60mm European

cassettes to meet all installation environments;

7.Amazing Silver Frame opens your modern life.

8. Interlock to connect gives you easy installation.

On Functionality

1. Rich function options, Modbus, WIFI, keycard, etc, to meet all your needs;

2. Strict temperature control accuracy (± 1°C) to provide the warmth you want;

3. Power off protection, save all your settings safely;

4. Provide weather information and humidity display

5. Preset adjustment of 5+1+1 mode in a week, programmable setting of 6 time

periods a day, green energy saving, Less cost, more intelligent and

environmental protection;

6. Support the creation of product local groups/shares to achieve unlimited

centralized control of the number of products/ multi-terminal control;

7. Perfect access: Tmall Genie, Amazon echo, Google Home, full experience new

voice control method;
