ASTM satu mesin dalam persediaan mesin bubut biasa C6140D Presisi horizontal lantai C6240 sadel bubut

{{ product.price_format }}
{{ product.origin_price_format }}
Stok:
SKU:{{ product.sku }}
Model: {{ product.model }}

{{ variable.name }}

{{ value.name }}
Detail Produk

未标题-1_01
11

技术参数

Specifcatinos

C6140D

C6240D

中心高

Center height

200mm

床身上最大工件直径

Max.Swing over bed

400mm

刀架上最大工件直径

Max.Swing over carriage

240mm

马鞍槽最大工件直径

Max.Swing in gap

——

580mm

马鞍槽有效长度

Effective gap length

——

200mm

最大工件长度

Max.Length of workpiece

750/1000mm

床身宽度

Width of bed

310mm

主轴孔锥度

Spindle taper

莫氏6号MT6

主轴通孔直径

Thru-hole of spindle

52mm

转速范围

Range of spindle speeds

30-1600r/min(12steps)

横刀架行程

Cross toolpost travel

240mm

小刀架行程

Compound toolpost travel

140mm

尾座顶尖行程

Tail stock center travel

90mm

尾座套筒锥度

Tail stock sleeve taper

MT4

电机功率

Spindle motor

3/4kw

公制螺纹

Rang go metic threads(kinds)

0.45-20mm(30种)

英制螺纹

Range of inch threads(kinds)

80-1 3/4 tpi(35种)

纵向进给

Longitudinal feed per sindle rev.

0.039-1.1mm

横向进给

Corss feed per spindle rev.

0.018-0.55mm

外形尺寸

Overall dimensions for 750mm

2000*1130*1540



Overall dimensions for 1000mm

2250*1130*1540

净重

Net weight of 750mm

1700kg



Net weight of 1000mm

1800kg

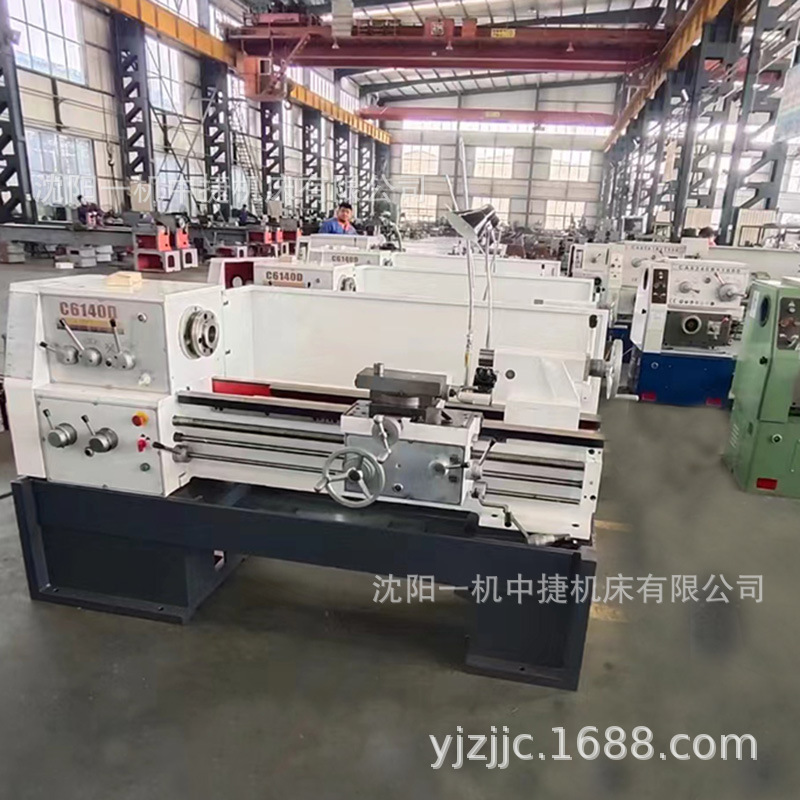

1d5e3581537af7d034e59a6b6a9e5d

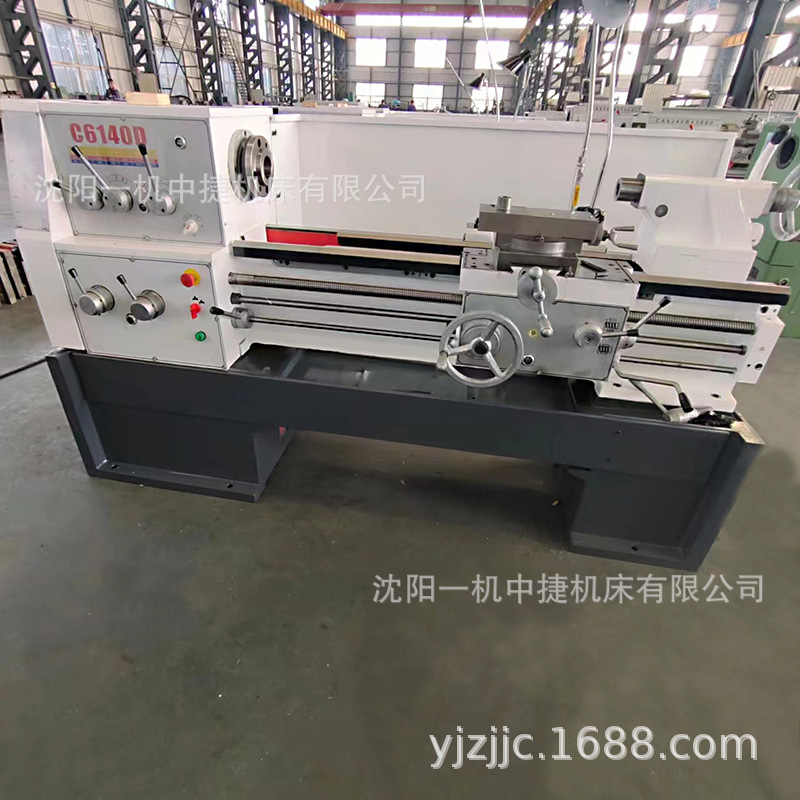

96352a2290aafd5af6dc86ce957e66

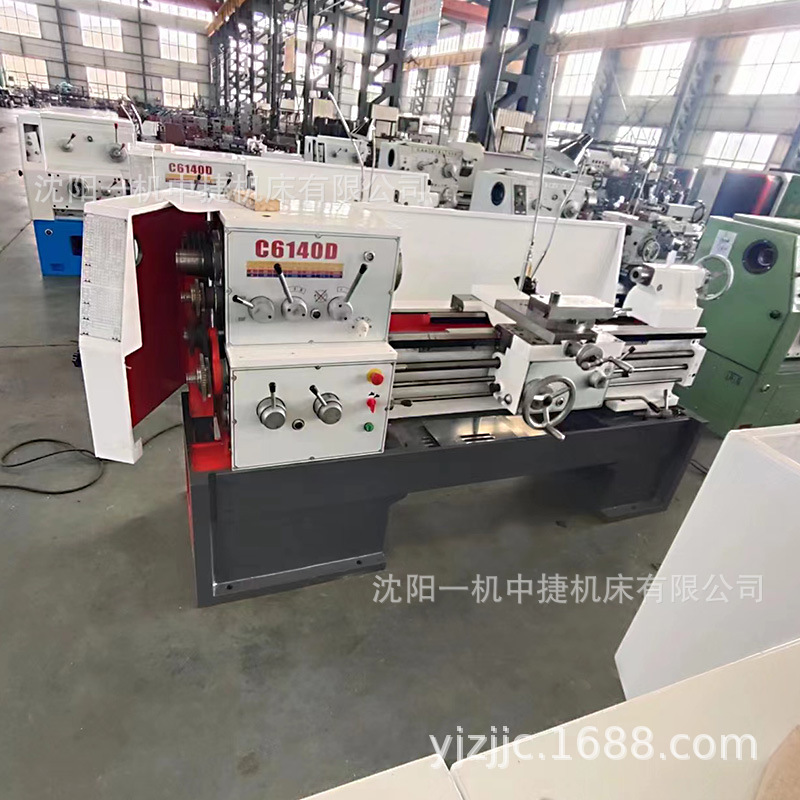

a9e2cf91928246651f6d8ca8c0e513

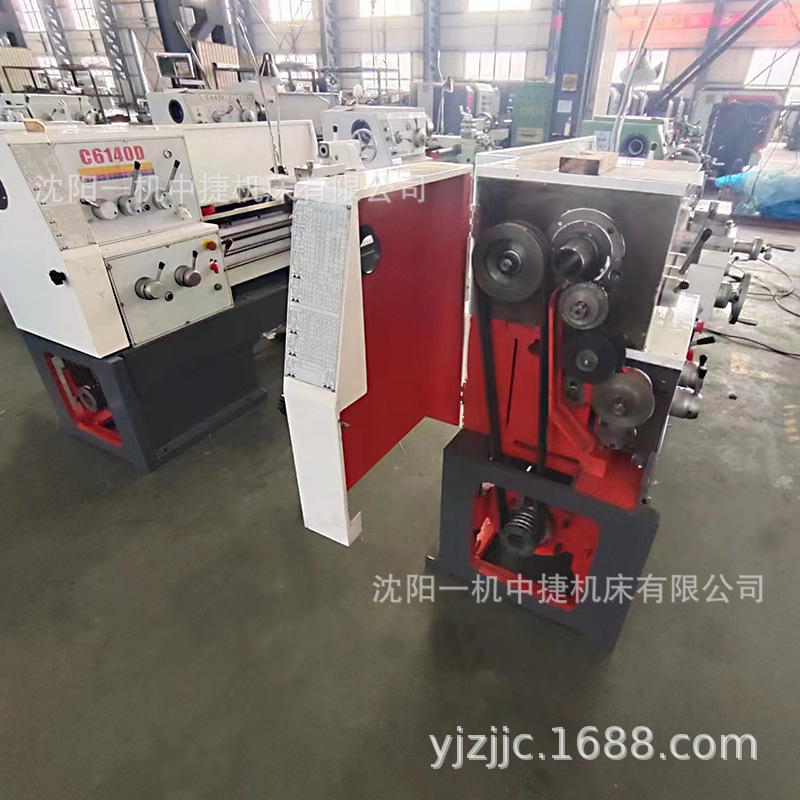

undefined
