Kabel RF koaksial RG58 19*0.19 tembaga timah konduktor multi-untai 50 ohm kabel ekstensi antena impedansi

{{ product.price_format }}
{{ product.origin_price_format }}
Stok:
Ratifikasi Minimum:500
SKU:{{ product.sku }}
Model: {{ product.model }}

{{ variable.name }}

{{ value.name }}
Detail Produk

RG58同轴射频电缆19*0.19镀锡铜多股导体50欧姆阻抗天线延长线

OEM出口订制工厂,同轴电缆源头工厂。

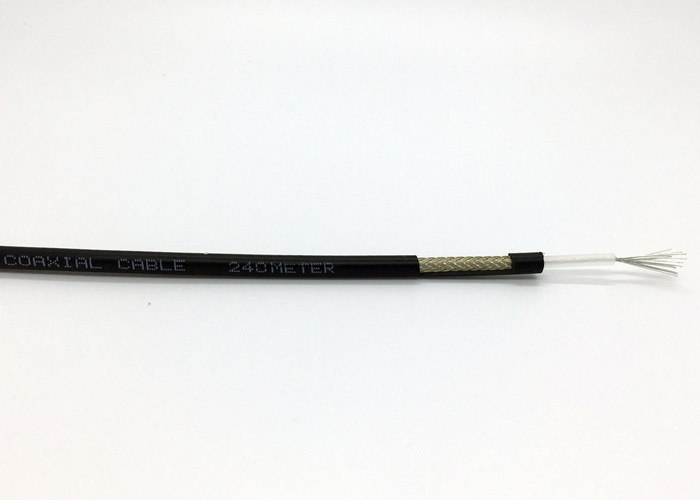

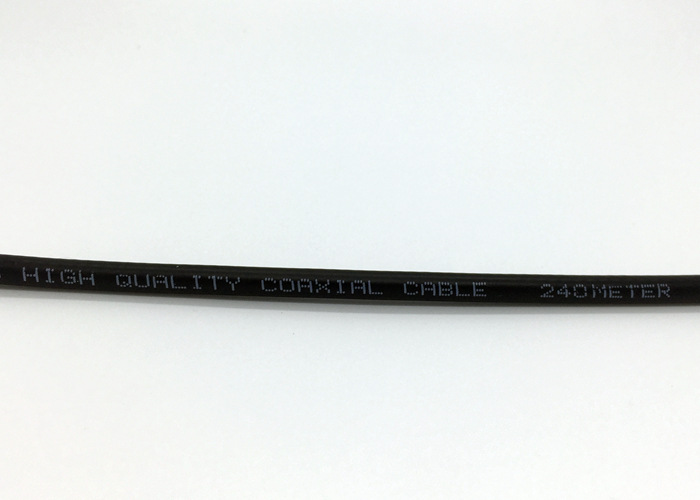

RG58U/ SYV-50-3同轴电缆

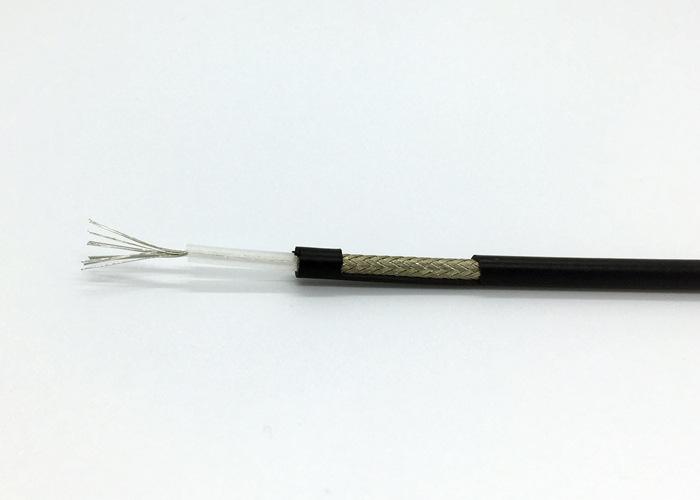

Construction结构

材料 Material                  外径Diameter(mm)

Inner Conductor 内导体                                  BC/TC                            19*0.18

Dielectric 绝缘                                               Solid PE                             7.25

Shield 编织                                               BC/TC Braid                           95%

Jacket   护套                                               PVC/ PE                              4.95



Electrical Characteristics 电气特点

Capacitance (pF/m) 电容                                                      101.0

Impedance (Ω) 阻抗                                                              50.0

Velocity of Propagation(﹪)   传输速率                                   66.0

Conductor DCR (Ohm/km)  导体电阻                                      5.6

Outer Shield DCR (Ohm/km)   编织电阻                                  3.9

Max Operating Frequency (MHZ) 最高运行频率                     11000.0

Max Operating Voltage (RMS) 最高运行电压                          3700.0

Operating Temp Range(℃) 使用温度                                   －40to 85



Attenuation(20℃)衰减

Frequency (MHZ) 频率           Max Attenuation (dB/100ft)    Max Attenuation (dB/100m)

10                              1.5                          4.9

50                              3.3                          10.9

100                            4.7                          15.5

200                            7.5                          24.5

400                            10.6                        34.8

600                            12.1                        39.6

860                            17.2                        56.4

1000                          18.4                        60.5









工厂直销/现货批发/外贸OEM 订制

工厂位于中国同轴电缆之乡-杭州临安区

证书齐全


款式多样

设备一流

包装可按照客户要求订制
